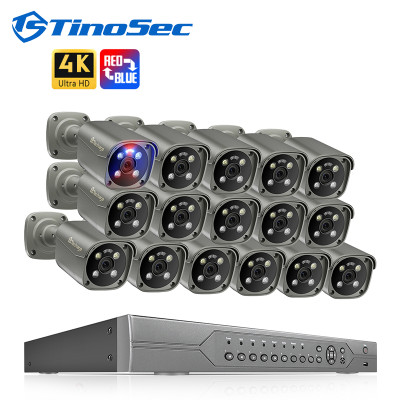

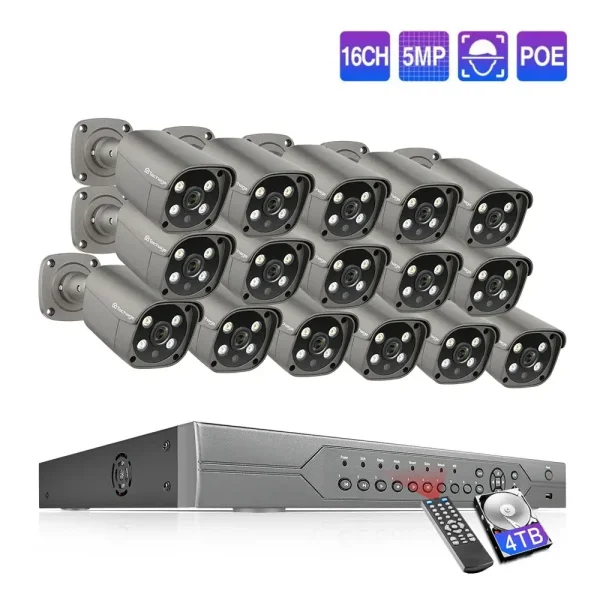

5MP 4K 16ch PoE NVR CCTV security IP camera system 16 channel PoE video surveillance camera system

5MP 4K 16ch PoE NVR CCTV security IP camera system 16 channel PoE video surveillance camera system

Item NO.: 6916K-605GP-AI-50G
Similar Style

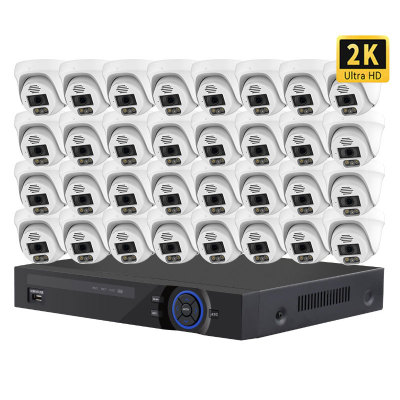

Full HD 5MP 2K Night Vision Security Camera Wired Face Detection Two Way Audio Full Color POE Security Camera 5MP 4K 16ch PoE NVR CCTV security IP camera system 16 channel PoE video surveillance camera system
Style

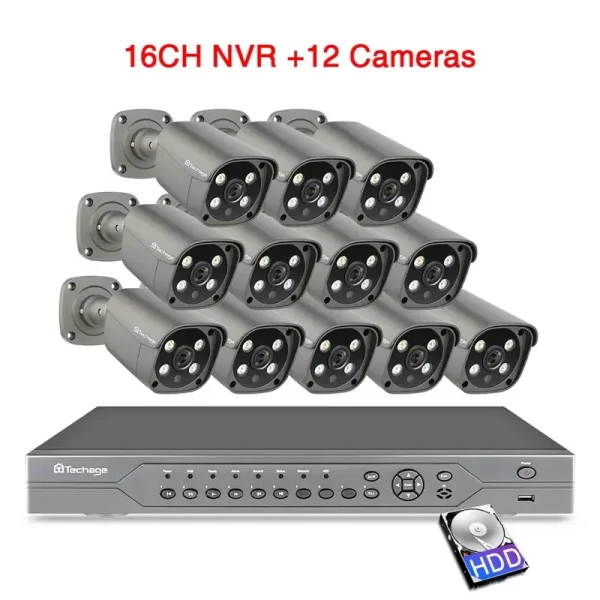

16CH 16 cameras kit 16CH 12 cameras kit 16CH 8 cameras kit
Inquiry

Detail

  • Product Name5MP 4K 16ch PoE NVR CCTV security IP camera system 16 channel PoE video surveillance camera system
  • Item NO.6916K-605GP-AI-50G
  • Weight22.0000 kg = 48.5017 lb = 776.0272 oz
  • CategoryPoE Camera System> Poe NVR Kit
  • BrandTinosec
  • Creation Time2023-06-28
  • Package Include:
  • 1 x H.265 16CH 4K Poe NVR
  • 8/12/16 x 5MPPoe IP Cameras With Two-Way Audio
  • 1 x Power Supply For NVR
  • 1 x USBMouse ForNVR
  • 1 x User Manual
  • 2 x Warning Sticker( Gift )
  • 8/12/16 x Waterproof Connector For Cable(Gift)
  • 1 X Remote Control(No Battery)





Real-time Two-way Audio Communication

Camera Has Built In Microphone And Speaker,

Never Miss a Moment With Your Family.



Smart Ai Motion Detection , Face ＆ Vehicle Detection

When It Motion Detect , The 2pcs White Leds Will Light,Serve As a Warning Deterrent.




Intelligent Identification Alarm

Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.



Face Record/Face Detection/Face Playback

Record Every Face That Appears On The Lens, Without Missing Any Details.




Video With Smart Playback

Smart Playback Available With Customizable Searching Area,

Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.



Smart IR-Cut Full Color Night Vision

When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,

There Are Three Night Modes For You To Select.



Support 5MP HD Display

Show Higher-Quality Images, With Better Experience.



H.265 POE CCTV System

H.265 More Clear , Hd Resolution Offer You Best Image Quality In a Lower Bit Rate.

Save More Storage Space,Can Reduce 40%-50% File Size,Save Your Hdd Storage Space And Reduce Your Purchase Cost.




POE Advantage, Why Choose POE ?

Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.

Save Money And Convenient,POE NVR = NVR + POE Switch


Max Support 100 Meters Cables Transmission Distance

Which Greatly Increases Home Installation Convenience.



Install and Connect It

It Can Be Quickly And Easily Setup By Anyone,

Instantly See Live Video Using Your Computer, Tablet, Or Phone From Anywhere.

Don't Need Extra Power Cables Or Adapters Or Switch.



IP66 Waterproof Security Camera

Our Camera All Can Suit For Both Outdoor And Indoor Usage.



Remote Access Anytime, Anywhere

Based On P2P (Peer To Peer) Technology, Support Plug-And-Play Installation.

Access The Ip Camera Through Its Web Interface Via Internet Explorer,

Also Comes With a Free Smartphone App (Android & Iphone) For Remotely View From Anywhere.

Support IOS And Android Device Access. Scan QR-Code To Login. Download Free App In Apple App Store / Google Play.




Kits
Model Type:
POE Surveillance Kit
Model No.
YN-6916K-605G-AI-50G


POE NVR
Model No
XM-6916K
Audio interface
Two-way Audio, Bulit in Mic and Speaker,
support audio and video synchronization
Video Output
Main Stream:8mp 3840*2160@20fps;5MP 2592*1944@20fps;4MP 2560*1440@25fps;2MP 1920*1080@25fps;Sub Stream:704*576@25fps
Record mode
Manual,Alarm,Motion Detection,Timing
Internet Interface
5*RJ45 10M/100M, 4*RJ45 support POE IEEE802.3af/at
Backup method
USB,Mobile hard disk,network backup,SATA
Network protocol
On-vif/P2P/RTSP/FTP/DHCP/NTP/UPnP
Power
48V/2A
Size
L218*255*41mm


Characteristics
AI
Human body motion detection,line detection
D-WDR
Support
WEB
Support
CMS
Support
Operation interface
16-bit true color graphic menu operator interface with mouse operation
Video access
16 channels 4K 8M/8 channels 4K 5M/4 channels 4K 1080P
Motion Dection
Support
Storage Type
2 * SATA Interface(Max 2pcs 8TB)
OEM & ODM
Support
Custom LOGO
Support
Model
Model Type:
POE Camera
Model No.
XM-605GP-AI-50G
System
System structure
Embedded RTOS design, dual-core 32-bit DSP (XM550AI), pure hard compression, watchdog
Video
Sensor
5million 1/2.7 "sc5335p low illumination level CMOS sensor; color 0.01Lux@F1.2 , black and white 0.001Lux@F1.2
Video processing
H.265AI encoding, double stream,AVI format;Bit stream 0.1M~10Mpbs adjustable; The frame rate is adjustable from 1 to 30 frames/SEC
Image output
Main stream:5MP 2592*1944@15fps；4MP 2560*1440@20fps；2MP 1920*1080@20fps；Sub stream: 800*448@25fps
Shutter
1/50(1/60)to 1/10000 of a second
Noise reduction
2 d / 3 d noise reduction
Wide dynamic
Digital-wide dynamic
Lens
3.6mm hd lens
Night vision
IR-CUT，Infrared night vision, color filter automatically switch
light distance
Infrared 15m ，white light 10m(2 infrared light,2 white light)
Audio
Audio processing
G.711A，Codec standard, two way audio,audio and video synchronization
Audio interface
-33dB high sensitive mic, 8 Ω 1W horn
Network
Network interface
One RJ45 Ethernet port,10/100M auto-sensing,supports network protocols such as RTSP, FTP, DHCP, NTP, and UPnP
Alarm
Human detection, Motion detection, Smart AI alarm, Face detection(Implemented with back-end NVR)
APP push, voice alarm, video recording, capture pictures
Video
Video mode
Timing video, event video
Playback mode
Event playback, time playback
Other
Reliability
Comprehensive lightning protection，In line with national and international standards,7*24 hours 65℃ high temperature test is
stable and reliable
ONVIF
support
Cell phone monitoring
Mobile phone monitoring (iOS, Android)
power
POE48V/DC12V
Material
Metal Housing
Work environment
Temperature
-20℃ to +55℃
Humidity
30% to 80% RH





Company Profile
FAQ
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!

Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.

Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.

Q: What is your delivery time?Complete HD Camera system:
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.

Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.

Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!

Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
