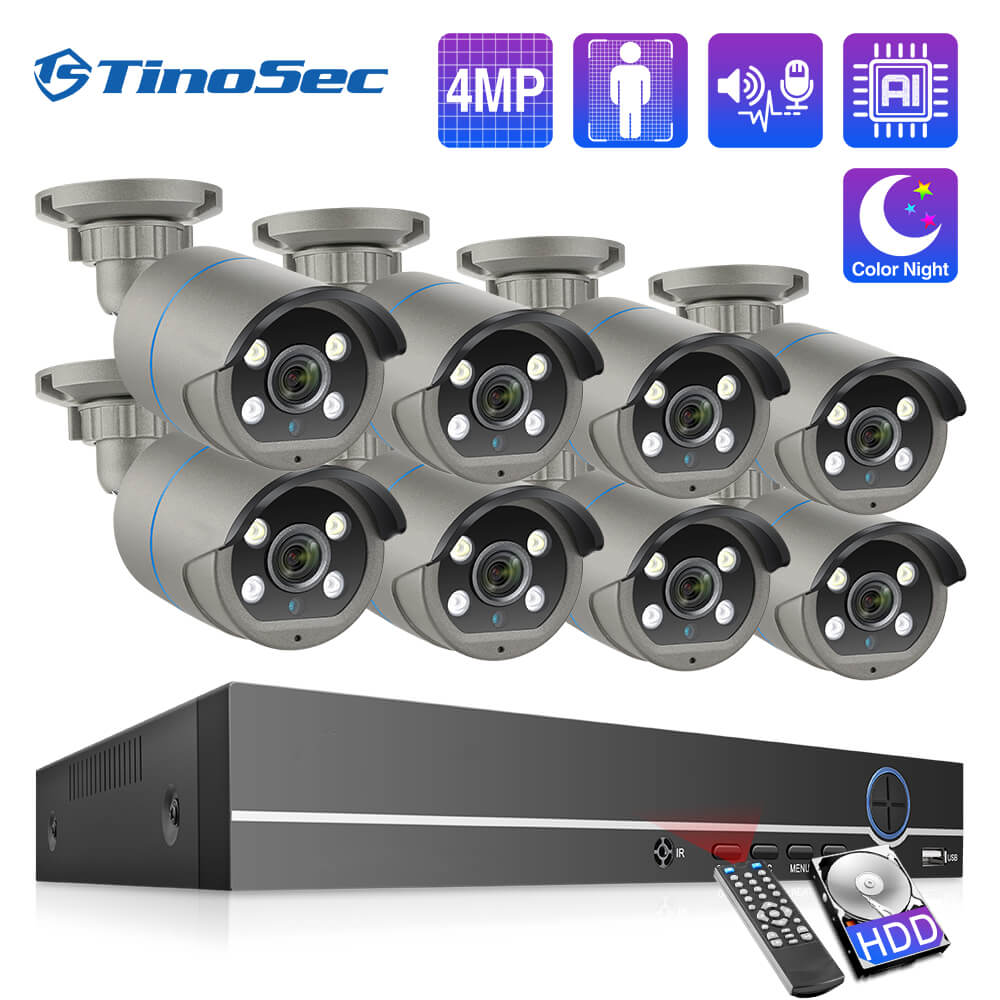

8CH 4MP H.265 HD POE NVR Kit CCTV Security System 1080P IR Outdoor Two-way Audio Record IP Camera Video Surveillance Set

8CH 4MP H.265 HD POE NVR Kit CCTV Security System 1080P IR Outdoor Two-way Audio Record IP Camera Video Surveillance Set

Item NO.: 6708K-8-608GP-AI-40
Similar Style
8CH 4MP H.265 HD POE NVR Kit CCTV Security System 1080P IR Outdoor Two-way Audio Record IP Camera Video Surveillance Set
Camera Kit

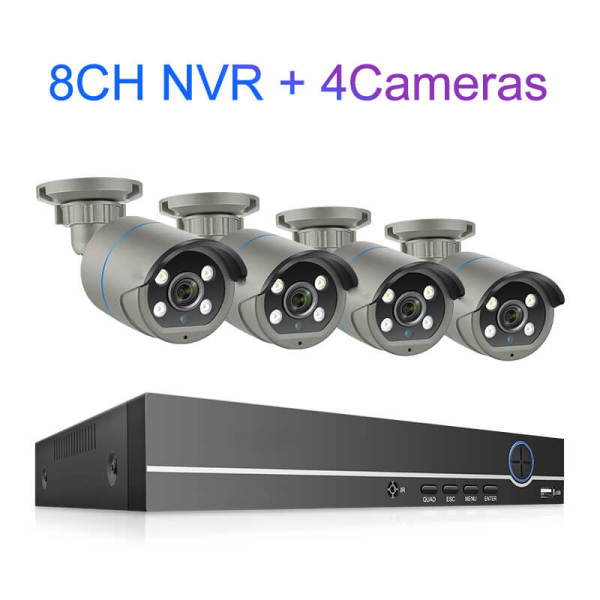

8CH 8 cameras kit 8CH 6 cameras kit 8CH 4 cameras kit 8CH 2 cameras kit
Inquiry

Detail

  • Product Name8CH 4MP H.265 HD POE NVR Kit CCTV Security System 1080P IR Outdoor Two-way Audio Record IP Camera Video Surveillance Set
  • Item NO.6708K-8-608GP-AI-40
  • Weight10.0000 kg = 22.0462 lb = 352.7396 oz
  • CategoryPoE Camera System> Poe NVR Kit
  • BrandTinosec
  • Creation Time2023-08-02
  • Camera is built-in Microphone and Speaker, Support Two-way Audio Sound Recording.
  • Support AI Human boday recognition,face detection.
  • For P2P, remote surveillance is available by free app for PC and phone.
  • POE cameras would be powered by the POE NVR, no camera power adapter needed,simplifies installation, and lowers cabling costs.



Note:

1, Our POE NVR is 8CH NVR , can connect 8 cameras max. You only need buy one POE switch, then The NVR can Up to 16CH NVR , please contact us buy it .
2, Our POE NVR can support 8MP max, you can connect 2MP, 3MP, 4MP, 5MP,8MP cameras with our NVR. but you need buy our poe cameras , then they can work together !
3, Our NVR and cameras all are H.265 .
4, All Cameras are built-in Microphone and Speaker, Support Two-way Audio Recording

Face Record/Face Detection/Face Playback

Record Every Face That Appears On The Lens, Without Missing Any Details.



Smart Motion Detection & Human Detection & E-mail Alerts

when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.

When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.



H.265 Poe CCTV System

H.265 More Clear, HD Resolution Offer You Best Image Quality In a Lower Bit Rate.

Save More Storage Space, Can Reduce 40%-50% File Size.

Two-way Audio Record Camera

Built-in Microphone and Speaker, support Face to Face Communication.

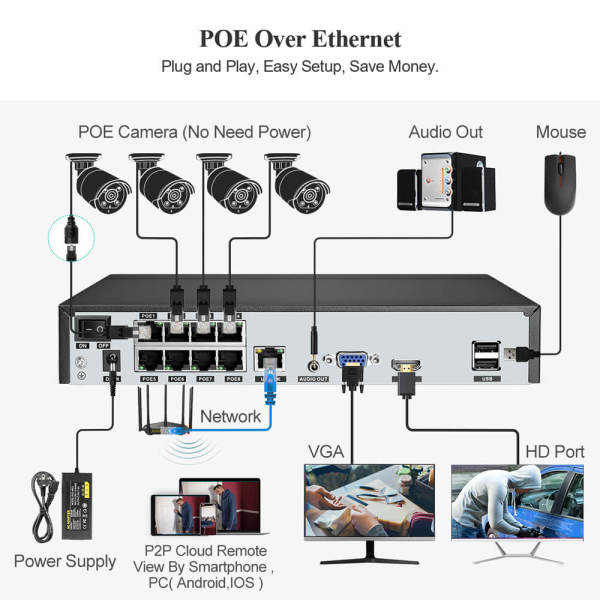

POE Advantage, Why Choose POE ?

Don't need extra power cables or adapters or switch.Plug And Play and easy setup.

Save Money and Convenient, POE NVR = NVR + POE Switch

Max Support 100 Meters Cables Transmission Distance

Which Greatly Increases Home Installation Convenience.

Our NVR Supports up to 14TB HDD

Install and Connect it

It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.

Don't need extra power cables or adapters or switch.

The Camera System can connect up to 16pcs camera if connect it with 8CH POE Switch

If you need 8CH POE Switch, please click

4MP HD Display

H.265 Video, 4MP High Definition Image, Super Infrared Night Vision

IP66 Waterproof Security Camera

Our camera all can suit for both outdoor and indoor usage

Smart IR-Cut Full Color Night Vision

When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,

There Are Three Night Modes For You To Select. (Day Vision, Night Vision, Full Color Night Vision)

Video With Smart Playback

Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos

Remote Access Anytime, Anywhere

Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.



H.265 POE NVR ( with Audio out )

*Support HD output VGA output
*Access third party
*Support web, CMS, center platform management software MYEYE, provide SDK development
*Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
*Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)
*Remote access, comes with Domain Name Service (ARSP), remote monitoring with one button enabled.
*System resources : Simultaneous multi-channel real-time recording, playback, network operation, USB backup
*Display quality : Max: 5MP
*Audio compression: G.711A
*Recording mode: Manual>Alarm>Dynamic Detection>Timing
*Record storage: HDD、Network
*Backup mode : Network backup, USB hard disk, USB burner, SATA burner
*Network interface: 9*RJ45 10M/100M Adaptive Ethernet port, 8 RJ45s support the standard POE IEEE802.3af/at Protocol
*20+ Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German etc

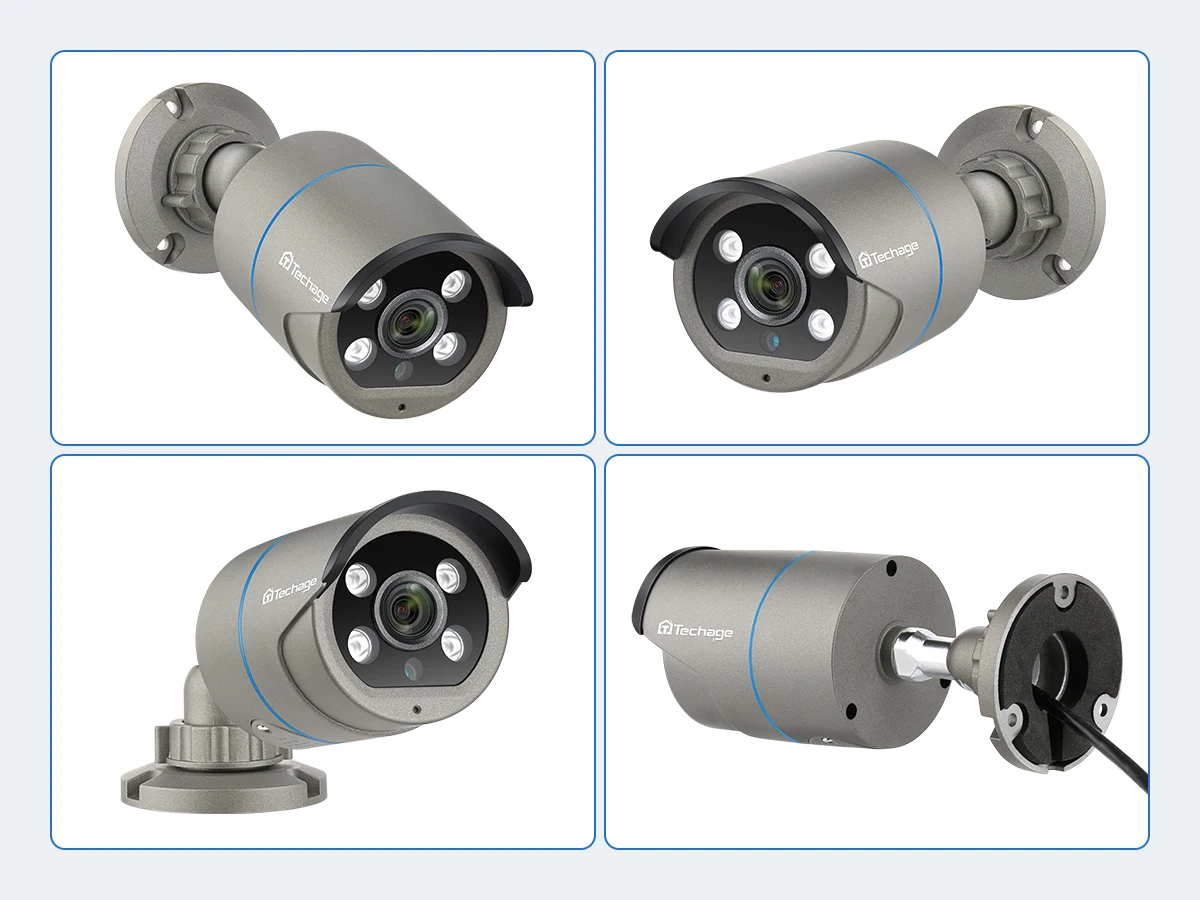

H.265 4MP Audio Camera

Sensor: 1/2.8" CMOS
Effective Pixel:4.0MP
Camera Lens: 3.6mm, Viewing Angle: 75°
Day & night conversion mode: Auto,10-20M IR Night Vision
Leds : 4pcs Leds
Working Temperature: -25°C ~ 50°C
Audio interface:
Two way Audio, Bulit in Microphone and Speaker , support audio and video synchronization
Function: Suppoet WEB ,OSD,Motion detection;Support CMS
Network Protocol: RTSP/FTP/DHCP/NTP/UPnP/P2P
Power: DC12V , POE



Specification
Kits
Model Type:
4MP 8CH POE Camera system
Model No.
6708K-6-608GP-AI-40
POE Camera
Lens
3.6mm
Sensor
1/2.5"SC335E CMOS
Image Pixel/Resolution
4MP
Image Compression:
H265
Infrared Distance
To 30m
Day & Night
Automatic IR-Cut
2D/3D DNR
Auto/BW/Color
OSD
Date Time/Tilt
Internet Interface
1*RJ45 Ethernet Interface, 802.11b/g/n
Power
12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ
Shape material
Metal
Waterproof
IP66
POE NVR
Model No
XM-6708K
Audio interface
Two-way Audio, Bulit in Mic and Speaker,
support audio and video synchronization
Video Output
Main Stream: 8M 3840*2160@15fps; 5MP 2592*1944@15fps; 4MP 2560*1440@20fps;
2MP 1920*1080@20fps;Sub Stream:704*576@25fps
Record mode
Manual,Alarm,Motion Detection,Timing
Internet Interface
1*RJ45 10M/100M, 8*RJ45 support POE IEEE802.3af/at
Backup method
USB,Mobile hard disk,network backup,SATA
Network protocol
On-vif/P2P/RTSP/FTP/DHCP/NTP/UPnP
Power
48V/2A
Size
L218*255*41mm
Characteristics
AI
motion detection,Face detection
D-WDR
Support
WEB
Support
CMS
Support
Operation interface
16-bit true color graphic menu operator interface with mouse operation
Video access
4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1）
Motion Dection
Support
Storage Type
1 * SATA Interface(Max 14TB)
OEM & ODM
Support
Custom LOGO
Support
Kit Including
Packing info
*1 x 8CH 8MP 48V POE NVR
*6 x 4MP Waterproof Outdoor POE IP Cameras
*6 x 20M Power Network Cable for Camera
*1 x Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*6 x Waterproof Connector for Cable
*1 X Remote Control (No Battery)
Packing & Delivery
*1 x 8CH 8MP 48V POE NVR
*6 x 4MP Waterproof Outdoor POE IP Cameras
*6 x 20M Power Network Cable for Camera
*1 x Power Supply for NVR
*1 x Mouse for NVR
*1 x User manual
*6 x Waterproof Connector for Cable
*1 X Remote Control (No Battery)
*HDD no included,it is optional
